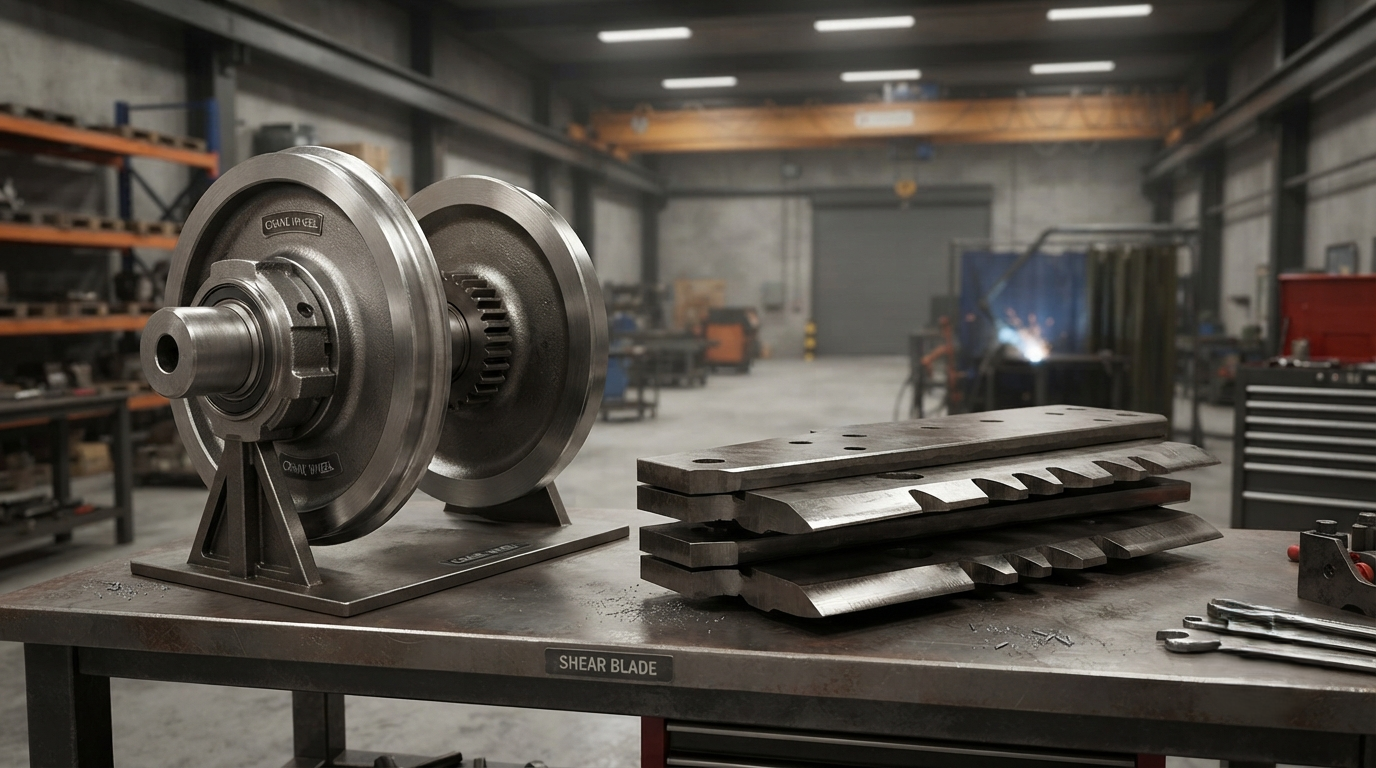

Heavy industries depend on more than large machines and advanced automation. Their performance also relies on smaller mechanical components that repeatedly handle high loads, friction, vibration, and cutting forces. Among these components, the Crane Wheel and Shear Blade are particularly important in material handling and metal-processing operations.
A crane wheel helps industrial cranes travel safely and consistently along their rails, while a shear blade performs controlled cutting of sheet metal and plates. When either component is poorly selected or badly maintained, production efficiency can suffer.
Understanding their working conditions, material requirements, and maintenance needs can therefore help engineers and industrial buyers make better purchasing decisions.
How Crane Wheels Support Material Movement
Industrial cranes are expected to lift and transport extremely heavy materials across factories, warehouses, ports, workshops, and steel-processing facilities.
The Crane Wheel transfers these loads onto the crane runway while allowing the entire structure to move horizontally.
Unlike ordinary wheels, crane wheels must repeatedly handle concentrated loads and rolling contact with steel rails. They may also experience side forces, acceleration, braking, and occasional impact.
For this reason, dimensional accuracy is essential.
An effective crane wheel should provide:
- Reliable load distribution
- Smooth rail movement
- Good resistance to wear
- Adequate flange strength
- Accurate tread geometry
- Resistance to fatigue
- Consistent hardness
- Long working life
Poor wheel geometry can create additional stress on bearings, rails, shafts, and crane structures.
Why Crane Wheel Design Is Not One-Size-Fits-All
Every crane system has different operating requirements.
A light workshop crane may operate very differently from a crane used inside a steel mill or shipyard. Consequently, wheel selection should be based on the actual equipment rather than simply choosing a standard product.
Common configurations include:
- Single-flange wheels
- Double-flange wheels
- Flangeless designs
- Forged steel wheels
- Cast steel wheels
- Hardened tread wheels
- Custom-engineered wheels
A customized Crane Wheel may be necessary when replacing parts in older equipment or machinery built around non-standard rail dimensions.
What Determines Crane Wheel Durability?
Wheel life depends on more than just steel quality.
Several operating and engineering factors influence durability, including:
- Crane load
- Rail alignment
- Wheel alignment
- Travel speed
- Duty frequency
- Wheel diameter
- Tread hardness
- Operating environment
Forged carbon and alloy steels are frequently used because they offer a useful combination of strength, toughness, and fatigue resistance.
Heat treatment may also be applied to improve tread wear resistance while preserving toughness in the wheel core.
The objective is not simply to make the wheel extremely hard. Excessive hardness without adequate toughness may create another type of failure risk.
The Role of Shear Blades in Metal Processing
Where crane wheels support movement, the Shear Blade supports production through accurate cutting.
Industrial shearing machines use two cutting edges to separate metal through concentrated force. The process is fast and efficient, making it widely used in sheet metal fabrication and large-scale manufacturing.
Typical materials processed using shear blades include:
- Carbon steel
- Mild steel
- Stainless steel
- Aluminum
- Copper
- Brass
- Metal sheets
- Industrial plates
The blade must repeatedly produce acceptable cuts without losing edge quality too quickly.
Why Shear Blade Geometry Matters
A Shear Blade may appear simple, but its performance depends heavily on precision.
Blade straightness, cutting angle, edge condition, thickness, hardness, and clearance all affect the result.
Incorrect blade geometry may lead to:
- Excessive burr formation
- Distorted sheet edges
- Higher cutting force
- Faster blade wear
- Poor dimensional accuracy
- Increased machine stress
For this reason, selecting a blade only by length and width is rarely enough.
Machine specifications and cutting conditions should also be considered.
Choosing the Right Steel for a Shear Blade
No single blade material is ideal for every operation.
Different steel grades provide different combinations of hardness, toughness, edge retention, and resistance to wear.
| Blade Material | Key Characteristic | Typical Usage |
| Carbon Tool Steel | Affordable and practical | Low-volume cutting |
| Alloy Tool Steel | Balanced toughness | General metal fabrication |
| D2 Tool Steel | Strong wear resistance | Continuous production |
| High-Speed Steel | Excellent edge retention | More demanding materials |
| Special Alloy Grade | Application-specific performance | Heavy industrial cutting |
A blade used for thin aluminum sheets may not require the same characteristics as one cutting thick stainless steel plate.
Material selection should therefore reflect the actual application.
Crane Wheel and Shear Blade: Two Different Engineering Challenges
The Crane Wheel and Shear Blade face very different working conditions, but both require reliable manufacturing.
| Consideration | Crane Wheel | Shear Blade |
| Primary Function | Moves crane systems | Cuts metal |
| Main Working Force | Rolling and compression | Shearing and impact |
| Key Wear Area | Tread and flange | Cutting edge |
| Important Property | Strength and fatigue resistance | Hardness and toughness |
| Accuracy Focus | Wheel profile and dimensions | Edge geometry and straightness |
| Typical Maintenance | Alignment and wear inspection | Sharpening and clearance checks |
This comparison highlights why material selection must always match the job the component performs.
Warning Signs of Crane Wheel Problems
Maintenance teams should not wait until a crane wheel fails completely.
Several visible signs may indicate developing issues:
- Uneven tread wear
- Excessive flange wear
- Unusual vibration
- Abnormal travel noise
- Wheel slipping
- Rail damage
- Surface cracks
- Different wheel diameters on the same system
These symptoms may result from wheel wear, but they can also indicate rail misalignment or crane skewing.
Replacing a wheel without investigating the underlying cause may result in repeated failure.
Signs That a Shear Blade Needs Attention
Shear blades also provide warning signs before performance becomes unacceptable.
Common indicators include:
- Increased burrs
- Rough cut surfaces
- Higher machine effort
- Material deformation
- Chipped cutting edges
- Inconsistent cuts
- Frequent blade adjustments
A worn Shear Blade does not always need immediate replacement. Depending on blade condition and design, professional regrinding may restore the cutting edge.
However, sharpening must maintain accurate blade geometry.
How Proper Maintenance Reduces Industrial Downtime
Preventive maintenance is often more economical than emergency repair.
For crane wheels, inspections should include wheel profiles, bearings, shafts, flanges, and rail alignment.
For shear blades, maintenance teams should monitor blade sharpness, mounting condition, alignment, and cutting clearance.
Good maintenance practices can provide several benefits:
- Longer service intervals
- Lower replacement costs
- More predictable production
- Reduced secondary equipment damage
- Better product quality
- Fewer unexpected stoppages
Maintenance records can also help identify recurring wear patterns and underlying machine problems.
Where These Components Are Commonly Used
The Crane Wheel is widely used in industries where heavy materials must be transported efficiently.
Common sectors include:
- Steel production
- Warehousing
- Power generation
- Shipbuilding
- Foundries
- Ports
- Heavy manufacturing
- Infrastructure projects
The Shear Blade is common in:
- Sheet metal fabrication
- Automotive manufacturing
- Steel service centers
- Machinery production
- Metal recycling
- Construction equipment production
- General engineering workshops
Both components support processes where consistency and equipment availability are important.
Frequently Asked Questions
1. What is the purpose of a Crane Wheel?
A Crane Wheel carries the crane structure and enables controlled movement along its rail system.
2. Why are crane wheels often made from alloy steel?
Alloy steel can provide a strong combination of toughness, strength, wear resistance, and fatigue performance.
3. What causes uneven crane wheel wear?
Misaligned rails, wheel misalignment, crane skewing, excessive side loads, and improper installation can contribute to uneven wear.
4. Can an existing crane wheel be duplicated?
Yes. Manufacturers can often produce replacement wheels from drawings, verified dimensions, or suitable samples.
5. What does a Shear Blade cut?
A Shear Blade can cut various sheet and plate materials, including steel, aluminum, stainless steel, copper, and other metals.
6. Why does a shear blade produce burrs?
Burrs can result from worn cutting edges, incorrect blade clearance, unsuitable blade geometry, or improper machine settings.
7. Is a harder blade always more durable?
Not necessarily. A blade also needs adequate toughness to resist cracking and chipping.
8. Can industrial shear blades be re-sharpened?
Many blades can be professionally re-ground several times, depending on their design and remaining material.
9. How should crane wheels be selected?
Wheel diameter, tread width, flange dimensions, material, hardness, rail profile, speed, and crane load should all be considered.
10. How can shear blade life be improved?
Correct blade clearance, suitable material selection, timely sharpening, proper alignment, and avoiding excessive machine loads can improve service life.
