From pipes and sheets to masterbatch, engineering compounds, profiles, cables, and recycled plastics, extrusion provides a continuous and efficient method of converting raw materials into useful products. Among the available technologies, Twin Extruder and Single Extruder systems are two of the most widely used solutions.
Although both machines work on the basic principle of moving material through a heated barrel, their internal designs and processing capabilities are different. A Single Extruder uses one rotating screw, while a Twin Extruder operates with two screws. This difference influences mixing efficiency, material handling, processing flexibility, maintenance, and suitable applications.
Manufacturers planning a new extrusion line should therefore understand how each system works before choosing equipment.
Understanding the Single Extruder
A Single Extruder, commonly known as a single-screw extruder, consists of one rotating screw positioned inside a barrel. Plastic pellets, granules, powder, or other suitable materials are introduced through a hopper.
As the screw rotates, material travels through the barrel. Heat from the barrel and mechanical energy generated during processing gradually soften or melt the polymer.
The material is then homogenized and pushed toward the die. The die gives the extrudate its required shape before downstream equipment cools, pulls, cuts, winds, or otherwise processes it.
Single-screw technology is commonly found in manufacturing applications such as:
- Plastic pipes
- Plastic sheets
- Films
- Profiles
- Tubing
- Wire and cable coating
- Certain recycling processes
- General thermoplastic extrusion
Its relatively simple construction makes the Single Extruder an established solution for continuous production.
Understanding the Twin Extruder
A Twin Extruder, or twin-screw extruder, contains two rotating screws inside its barrel. These screws can be designed in several configurations depending on the intended material and processing requirements.
The presence of two screws provides greater control over material transportation and mixing.
Twin-screw extrusion is particularly important when a manufacturer needs to combine a base polymer with other ingredients such as pigments, fillers, fibers, stabilizers, flame retardants, processing aids, or performance modifiers.
Typical applications include:
- Polymer compounding
- Masterbatch manufacturing
- Engineering plastic compounds
- Filled polymers
- Color concentrates
- Reinforced plastics
- Reactive extrusion
- Recycling compounds
- Specialty formulations
The configurable nature of a Twin Extruder allows manufacturers to develop processing zones for conveying, kneading, mixing, venting, and other functions.
How the Extrusion Process Works
The basic extrusion process begins with feeding raw material into the machine.
Material then moves through different processing zones where temperature, mechanical shear, pressure, and screw movement transform it into a suitable condition for further processing.
A typical extrusion process includes:
- Raw-material preparation and feeding
- Material conveying
- Heating and melting
- Mixing and homogenization
- Pressure development
- Passing material through the die
- Cooling and downstream processing
- Cutting, winding, or pelletizing
The exact process varies considerably depending on whether the line uses a Twin Extruder or Single Extruder and what final product is being manufactured.

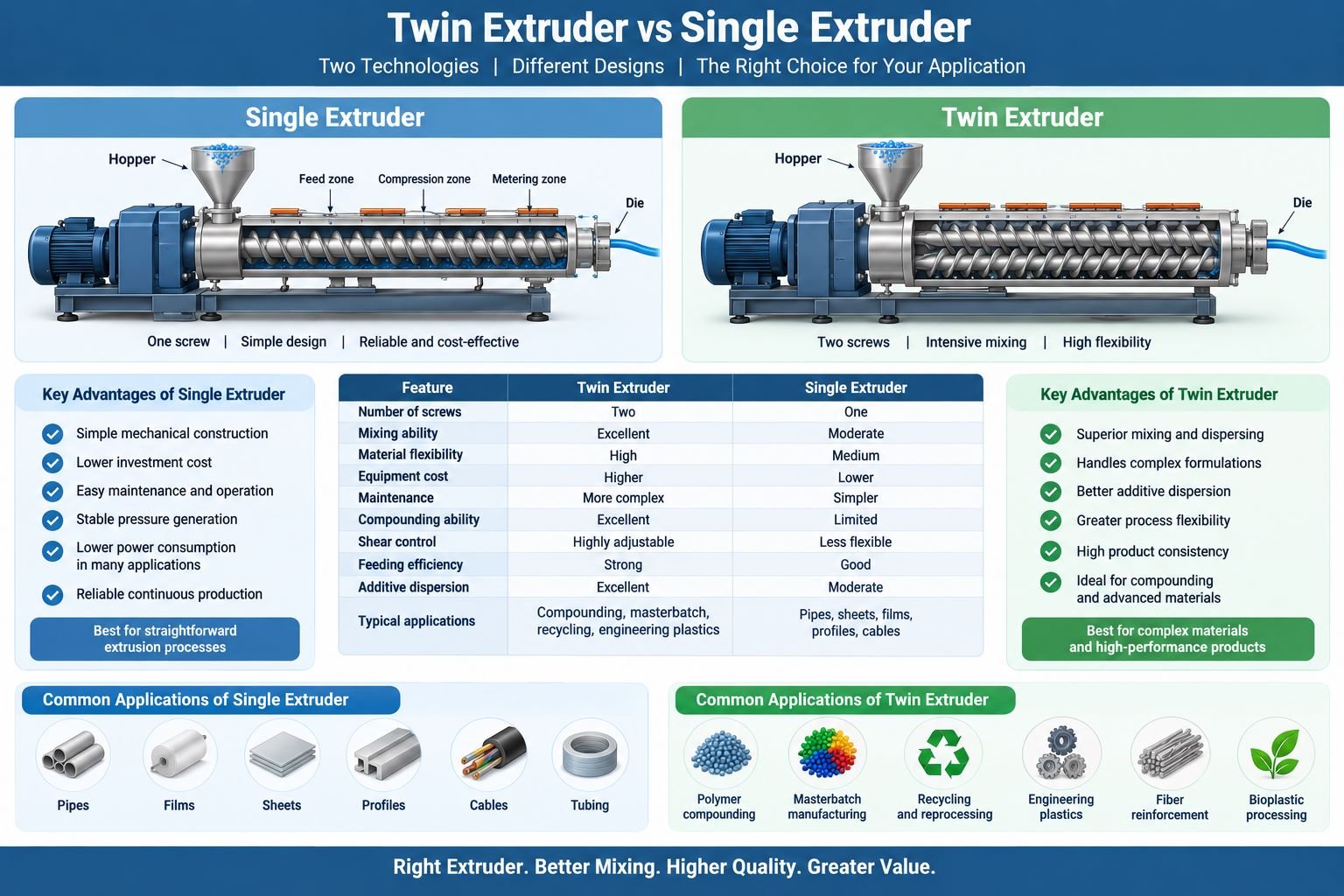

Twin Extruder and Single Extruder: Key Differences
Understanding their differences can help manufacturers determine which configuration better matches a particular production requirement.
| Factor | Twin Extruder | Single Extruder |
| Number of screws | Two | One |
| Mixing capability | Generally high | Generally moderate |
| Machine complexity | Higher | Lower |
| Compounding flexibility | Extensive | More limited |
| Maintenance | More involved | Relatively straightforward |
| Initial investment | Usually higher | Usually lower |
| Common applications | Compounding and blending | Conventional extrusion |
| Screw configuration | Highly flexible | Comparatively simple |
These differences do not mean one technology is universally better. The correct system depends on the material, formulation, production process, and desired final product.
Why Manufacturers Choose a Single Extruder
One of the biggest advantages of a Single Extruder is simplicity.
When raw material is already prepared and does not require intensive mixing, a single-screw system can provide stable and economical continuous processing.
The mechanical construction is generally less complicated than twin-screw equipment. This can simplify routine maintenance and make operation easier for established manufacturing processes.
A Single Extruder can be particularly practical for companies producing high volumes of consistent products such as pipes, sheets, films, profiles, and tubing.
The technology has also been used industrially for decades, making operating knowledge, spare parts, and downstream solutions widely available.
Why Manufacturers Choose a Twin Extruder
A Twin Extruder is especially valuable when the material formulation is more complex.
Modern plastic compounds can contain multiple ingredients. Simply melting these materials together may not provide the required distribution or dispersion.
Twin-screw systems can use specialized screw elements to control how ingredients interact during processing.
This makes them useful for applications involving:
- High filler concentrations
- Pigments and colorants
- Glass fibers
- Mineral fillers
- Polymer blends
- Performance additives
- Functional modifiers
Manufacturers can also introduce certain ingredients at different positions along the extrusion line, depending on equipment configuration.
Importance of Mixing in Polymer Processing
Mixing has a major influence on compound quality.
If pigments, fillers, or additives are distributed unevenly, the finished material may show inconsistent color, appearance, mechanical properties, or processing behavior.
A Twin Extruder is widely associated with compounding because its screw arrangement can provide both distributive and dispersive mixing.
Distributive mixing helps spread ingredients throughout the polymer, while dispersive mixing helps reduce concentrated particles or agglomerates.
A Single Extruder also provides homogenization, but it is frequently selected for applications where intensive compounding is not the primary objective.
Energy, Maintenance and Operating Costs
Machine purchase price should not be the only consideration when planning an extrusion line.
Manufacturers should calculate the total cost of operation, including:
- Electricity consumption
- Operator requirements
- Replacement components
- Screw and barrel wear
- Heating and cooling
- Preventive maintenance
- Production downtime
- Cleaning and material changeover
A Single Extruder can offer economic advantages in simpler production environments because its mechanical design is generally less complex.
A Twin Extruder may require greater investment and maintenance, but the additional processing flexibility can be valuable when manufacturing higher-complexity compounds.
How to Select the Right Extruder
The best extrusion machine should be selected according to actual production requirements rather than screw count alone.
Manufacturers should evaluate raw-material properties, desired capacity, product specifications, mixing requirements, filler content, heat sensitivity, moisture, abrasiveness, available utilities, automation requirements, and future product development.
It is also important to consider downstream equipment because the extruder is only one component of the complete production line.
Where possible, manufacturers should conduct trials using their actual formulation before finalizing equipment specifications.
Frequently Asked Questions About Twin and Single Extruders
1. What is a Single Extruder?
A Single Extruder is an extrusion machine that uses one rotating screw to convey, melt, homogenize, pressurize, and process suitable materials.
2. What is a Twin Extruder?
A Twin Extruder uses two screws and is commonly selected when greater mixing and formulation flexibility are required.
3. Which extruder is commonly used for polymer compounding?
Twin-screw extrusion is widely used for polymer compounding because it provides flexible mixing and ingredient incorporation.
4. Can a Single Extruder manufacture plastic pipes?
Yes. Single-screw extrusion is widely used in suitable pipe extrusion applications.
5. Can a Twin Extruder process fillers?
Yes. Properly configured twin-screw systems can process polymers containing many types of fillers and additives.
6. Which extruder has simpler construction?
A Single Extruder generally has a simpler mechanical arrangement.
7. Can recycled plastic be processed through an extruder?
Yes. Both technologies can be used in selected recycling processes depending on polymer type, contamination, moisture, and processing requirements.
8. Why is screw design important?
Screw geometry influences material conveying, melting, shear, mixing, residence time, and pressure development.
9. Is a Twin Extruder always better than a Single Extruder?
No. Each machine is suitable for different processing requirements. A simpler process may not require twin-screw technology.
10. What should be checked before purchasing an extruder?
Manufacturers should consider material characteristics, output requirements, mixing needs, product specifications, operating costs, maintenance, automation, and future production plans.
