The plastics and polymer processing industry is placing greater emphasis on extrusion efficiency as manufacturers seek consistent product quality, flexible material processing, lower waste, and improved production economics. At the center of this development are two established technologies: the twin extruder and single extruder.
Both systems continue to play important roles across pipe production, films, profiles, masterbatch, recycling, engineering plastics, and polymer compounding. However, changing material formulations and increasing demand for specialized compounds are influencing how manufacturers evaluate extrusion equipment.
Industry specialists increasingly emphasize that the choice should depend on processing requirements rather than assuming one configuration is universally superior.
Extrusion Technology Responds to Changing Manufacturing Requirements
Extrusion has traditionally been associated with melting plastic and forcing it through a die. Modern extrusion lines can perform considerably more sophisticated operations.
Depending on equipment configuration, a production line may handle:
- Feeding and conveying
- Polymer melting
- Material blending
- Additive incorporation
- Filler dispersion
- Moisture removal
- Pressure development
- Continuous shaping
The growing complexity of polymer formulations means screw configuration has become increasingly important.
While the single extruder remains a practical solution for stable continuous production, twin-screw technology offers additional processing possibilities where intensive mixing is required.
Single Extruder Maintains Strong Position in Conventional Production
Despite increasing interest in advanced compounding technologies, the single extruder continues to maintain an important position in global plastics manufacturing.
The machine operates with one rotating screw inside a heated barrel. Raw material enters through a hopper before being transported, compressed, melted, and homogenized.
The resulting polymer melt is then delivered toward the extrusion die.
The relatively straightforward configuration provides several operational advantages.
These include:
- Simpler machine construction
- Lower mechanical complexity
- Stable melt delivery
- Easier maintenance
- Competitive investment requirements
- Reliable continuous processing
For manufacturers working with standardized thermoplastics, these advantages remain commercially significant.
Pipe, Film and Profile Industries Continue Using Single-Screw Systems
The single extruder remains widely associated with applications where materials have already been formulated before entering the production line.
Common applications include:
- PE pipe manufacturing
- PP pipe production
- Plastic profiles
- Blown films
- Cast films
- Plastic sheets
- Cable coating
- Plastic tubing
In these applications, manufacturers primarily need controlled melting, pressure generation, and stable output.
Adding complex mixing technology may provide limited additional value when the incoming polymer already meets formulation requirements.
Twin Extruder Demand Supported by Advanced Compounding
While single-screw machines remain important for product extrusion, the twin extruder has become particularly significant in advanced material processing.
Twin-screw machines contain two screws operating inside a common barrel. Their interaction creates a different flow environment compared with single-screw equipment.
Material can repeatedly move between screw channels while being compressed, divided, stretched, and recombined.
This provides greater control over mixing and makes twin-screw equipment suitable for formulations containing several ingredients.
Compounding Becomes a Key Application
The growth of modified polymers has increased the importance of compounding technology.
Modern plastic formulations may contain:
- Base polymer
- Color pigments
- Calcium carbonate
- Talc
- Glass fibers
- Stabilizers
- Impact modifiers
- Flame retardants
- Processing aids
Simply melting these materials together does not guarantee a homogeneous compound.
A twin extruder can provide the mechanical mixing required to distribute ingredients throughout the polymer matrix.
Mixing Performance Separates the Technologies
Mixing is one of the clearest differences between the twin extruder and single extruder.
Single-screw equipment provides useful homogenization during normal melting and transportation. Twin-screw technology, however, can provide greater control over distributive and dispersive mixing.
Distributive Mixing Supports Material Uniformity
Distributive mixing spreads ingredients across the entire formulation.
For example, when pigments or functional additives are introduced, uniform distribution helps maintain consistent concentration throughout the processed material.
Dispersive Mixing Breaks Down Agglomerates
Dispersive mixing applies mechanical stress to clusters of particles.
This becomes important when processing pigments, minerals, fillers, and specialized additives that may form agglomerates.
Better dispersion can support more consistent mechanical, visual, and processing properties.

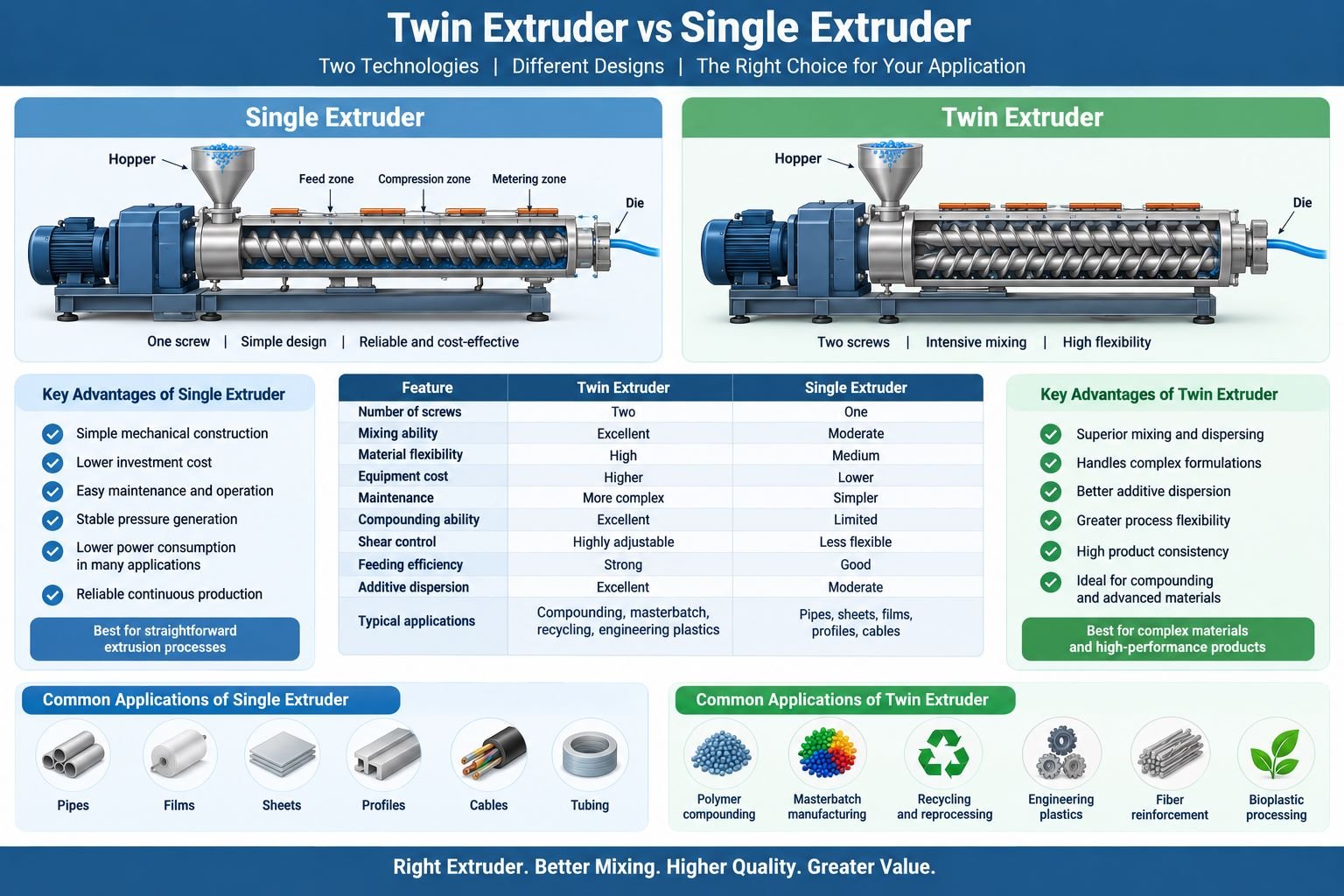

Twin Extruder vs Single Extruder Comparison
| Production Factor | Twin Extruder | Single Extruder |
| Screw arrangement | Two screws | One screw |
| Mixing capability | High | Moderate |
| Standard polymer extrusion | Suitable | Excellent |
| Compounding | Excellent | Limited |
| Filler incorporation | Excellent | Application-dependent |
| Equipment complexity | Higher | Lower |
| Initial investment | Generally higher | Generally lower |
| Maintenance | More specialized | Simpler |
| Formulation flexibility | High | Moderate |
| Process customization | Extensive | More limited |
Industry requirements rather than screw quantity ultimately determine the appropriate machine.
Masterbatch Production Drives Need for Controlled Dispersion
Masterbatch manufacturing represents an important application for the twin extruder.
Masterbatch contains concentrated pigments or functional additives dispersed within a carrier resin. Consistency is essential because the material is later used to modify other polymers.
Poor dispersion can result in uneven coloration, inconsistent additive performance, and downstream processing problems.
Twin-screw systems can create controlled mixing zones that help distribute and disperse concentrated ingredients more effectively.
Engineering Plastics Create More Complex Processing Demands
Demand for materials with specialized properties has also expanded the role of compounding.
Manufacturers can modify polymers by incorporating reinforcing or functional ingredients.
Glass fibers, for example, can be introduced to improve mechanical performance, while mineral fillers may modify stiffness, dimensional characteristics, or processing economics.
The twin extruder provides manufacturers with greater flexibility to introduce these materials at selected points in the processing line.
Modular Screw Designs Provide Processing Flexibility
Modern extrusion performance increasingly depends on screw configuration.
The screw in a single extruder typically contains sections designed for feeding, compression, melting, and metering.
Many twin-screw machines use modular screw elements.
Configurations can incorporate:
- Conveying elements
- Kneading blocks
- Mixing sections
- Reverse elements
- Specialized processing elements
Engineers can modify these arrangements according to the material being processed.
This allows greater control over shear, mixing intensity, residence time, and material flow.
Recycling Creates New Opportunities for Extrusion Equipment
Plastic recycling is another area increasing demand for flexible processing technology.
Recycled feedstock can be less predictable than virgin polymer. Materials may contain moisture, printing residues, contamination, volatile compounds, or variations in composition.
Both the single extruder and twin-screw machines can play roles in recycling, depending on feedstock quality.
Single-screw systems can provide efficient processing for relatively consistent recycled materials.
Where intensive homogenization, blending, modification, or volatile removal is necessary, twin-screw equipment may provide additional capabilities.
Degassing Becomes Important for Material Quality
Moisture and volatile substances can negatively affect polymer processing.
If these substances remain trapped inside the melt, manufacturers may encounter bubbles, surface defects, odors, or inconsistent finished products.
Modern extrusion equipment can include atmospheric vents and vacuum degassing systems.
A twin extruder can incorporate dedicated venting zones that allow volatile substances to escape while processing continues.
This feature is particularly relevant for recycled and specialized polymer compounds.
Energy Efficiency Remains a Major Industry Consideration
Energy consumption continues to influence equipment investment decisions.
The single extruder can provide highly efficient operation for conventional processing because of its relatively straightforward design.
Twin-screw machines may require greater installed power, but energy consumption must be considered alongside the operations being performed.
A twin-screw line may combine melting, blending, additive incorporation, compounding, and degassing in one continuous process.
For this reason, manufacturers increasingly evaluate energy consumption per kilogram of acceptable output rather than motor capacity alone.
Equipment Selection Shifts Toward Total Production Economics
Initial purchase price remains important, but manufacturers are increasingly considering the complete lifecycle of extrusion equipment.
Important factors include:
- Production capacity
- Energy consumption
- Product rejection rates
- Material losses
- Maintenance requirements
- Changeover times
- Operator requirements
- Product consistency
- Spare-part costs
- Future processing flexibility
A lower-priced machine may not always deliver the lowest production cost.
Likewise, a sophisticated system may provide limited financial benefit if the application does not require its additional capabilities.
Frequently Asked Questions
What is a twin extruder?
A twin extruder uses two screws to convey and process materials while providing advanced mixing and compounding capabilities.
What is a single extruder?
A single extruder contains one rotating screw that continuously transports, melts, homogenizes, and pressurizes suitable polymer materials.
Why are twin extruders used for compounding?
Their screw interaction provides strong mixing and allows fillers, pigments, fibers, and additives to be distributed throughout polymers.
Are single extruders still widely used?
Yes. They remain important for pipes, films, profiles, sheets, tubing, coating, and numerous conventional extrusion applications.
Which system provides better mixing?
A twin extruder generally offers stronger distributive and dispersive mixing.
Which extruder has lower maintenance complexity?
A single extruder generally has simpler maintenance requirements because it contains fewer screw and drive components.
Can both technologies process recycled plastic?
Yes. Suitability depends on recycled material quality, contamination, moisture, processing requirements, and final product specifications.
Why is degassing necessary?
Degassing removes moisture, air, and volatile compounds that could otherwise cause bubbles, odors, defects, or unstable processing.
Which extruder is used for masterbatch?
Twin-screw extrusion is widely used because masterbatch manufacturing requires effective pigment and additive dispersion.
How should manufacturers select extrusion equipment?
Selection should consider material properties, mixing requirements, output, energy efficiency, maintenance, product quality, and total lifecycle economics.
